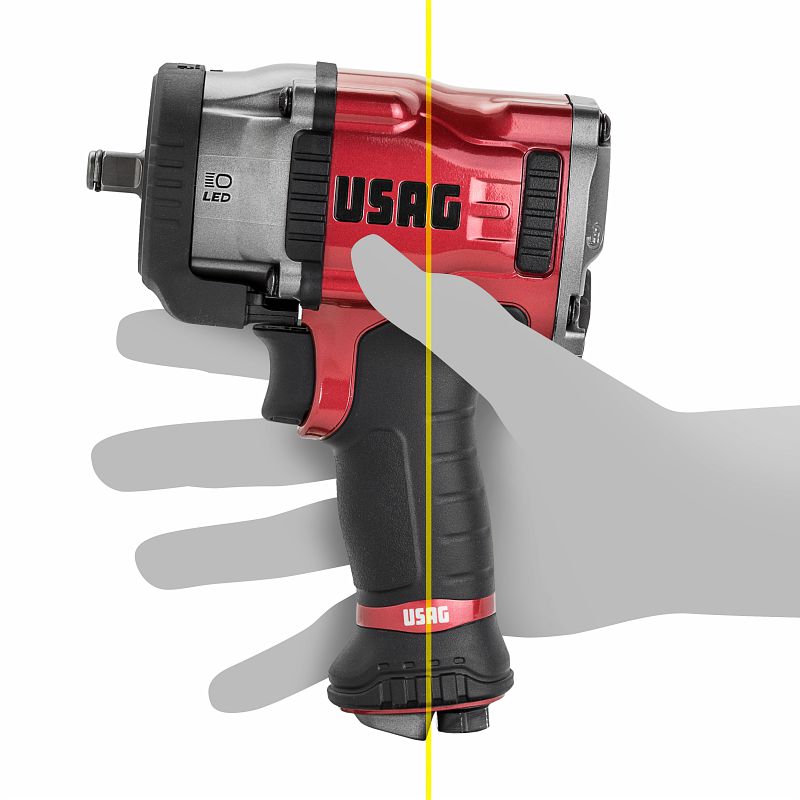

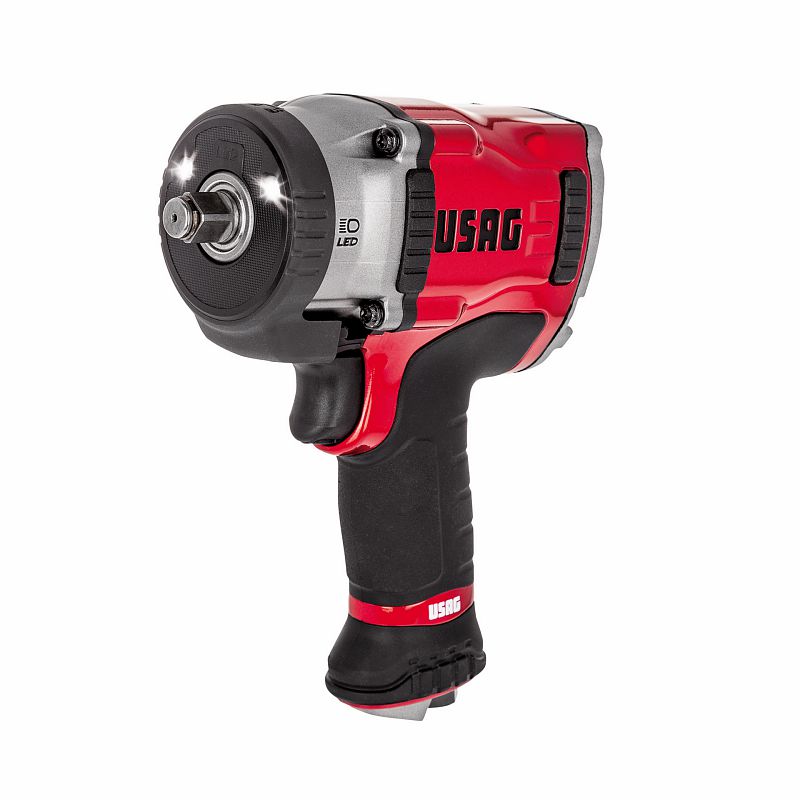

Magnesium impact wrench with LED - the top

Name: 943 PC1 1/2
Brand: Stanley Black & Decker Italia S.r.l.
Price: 393

943 PC1 1/2

en hu pt fr tr ru no bg cz de dk es gr hr nl pl ro rs

• Magnesium alloy casing: ultralight and powerful
• Aluminum motor housing

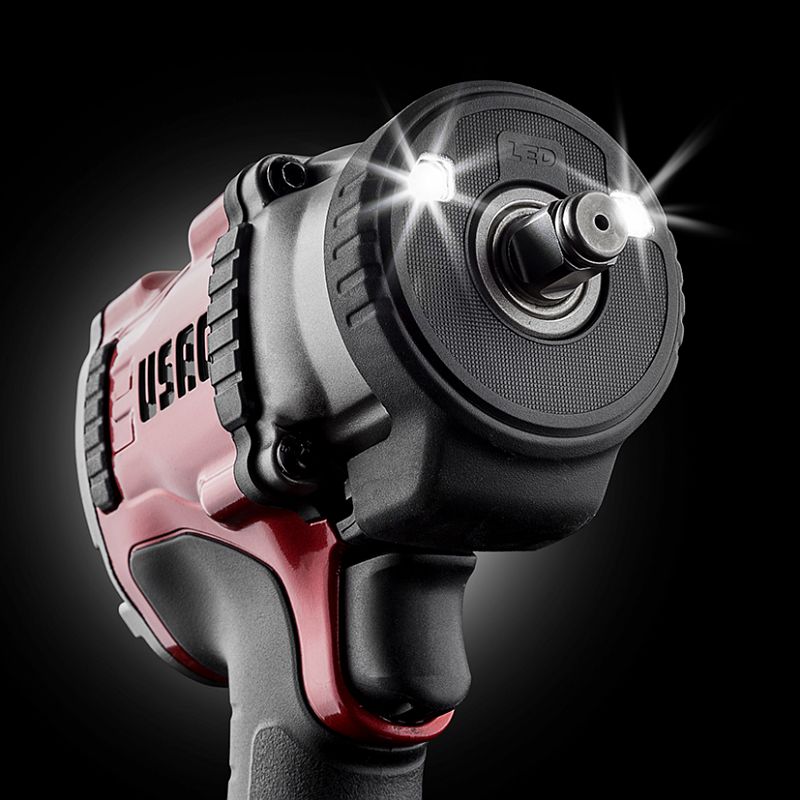

• Removable LED unit rechargeable with USB cable (3.7V 180 mAh Li-Ion battery)
• Reversible model with double hammer mechanism
• 3 tightening torque settings, always maximum untightening power
• Inversion and adjustment by Aluminium lever
• Progressive trigger
• Rubber side bumpers
• Balanced weight for maximum comfort
• Soft-touch bi-material handle
• Silencer and air exhaust integrated in the handle
• Spare rotor blades (8 pieces): code 1004755-63

Square drive (")	1/2
Strokes per minute	1200
Recommended air pressure (bar)	6,2
Air inlet (")	1/4
Torque in use (Nm min-Max)	320÷460
Vibrations (m/s²)	6,4
Average air consumption (l/min)	172
Sound power dB(A)	105 ±3
Max torque (Nm)	1898
Free speed (rpm)	6500
Ø internal hose (mm)	10
Sound level dB(A)	94 ±3
Bolt capacity	M20
Pression sonore dB(A)	94 ±3
Capacité	M20
Connexion carrée (")	1/2
Coups par minute (tours/minute)	1200
Pression d'utilisation (bar)	6,2
Admission taraudée (")	1/4
Couple de travail (Nm min-max)	320÷460
Niveau vibrations (m/s²)	6,4
Consommation moyenne d'air (l/min)	172
Puissance sonore dB(A)	105 ±3
Couple maximum (Nm)	1898
Vitesse (tours/minute)	6500
Sound level dB(A)	94 ±3
Par máximo (Nm)	1898
Velocidad (giros/min)	6500
Capacidad	M20
Square drive (")	1/2
Impactos/minuto (giros/min)	1200
Présion ejercida (bar)	6,2
Conexión fileteada (")	1/4
Par de apriete (Nm min-Max)	320÷460
Nivel vibraciones (m/s²)	6,4
Consumo medio aire (l/min)	172
Sound power dB(A)	105 ±3
nível vibrações (m/s²)	6,4
consumo médio de ar (l/min)	172
Sound power dB(A)	105 ±3
diâmetro interno do tubo (mm)	10
Sound level dB(A)	94 ±3
binário máximo (Nm)	1898
velocidade (rpm)	6500
Capacidade	M20
Square drive (")	1/2
batimentos por minuto (rpm)	1200
pressão exercida (bar)	6,2
Ligação rosca (")	1/4
luchtinlaataansluiting (")	1/4
koppelbereik (Nm min-max)	320÷460
trillingsniveau (m/s²)	6,4
gemiddeld luchtverbruik (l/min)	172
Sound power dB(A)	105 ±3
binnendiameter slang (mm)	10
Sound level dB(A)	94 ±3
maximum koppel (Nm)	1898
onbelast toerental (t.p.m.)	6500
capaciteit	M20
Square drive (")	1/2
aantal slagen per minuut (t.p.m.)	1200
Square drive (")	1/2
κρούσεις ανά λεπτό (στροφές/λεπτό)	1200
πίεση λειτουργίας (bar)	6,2
σπείρωμα εισόδου (")	1/4
Torque in use (Nm min-Max)	320÷460
επίπεδο κραδασμών (m/s²)	6,4
μέση κατανάλωση αέρα (l/min)	172
Sound power dB(A)	105 ±3
Ø εσωτερική (mm)	10
Sound level dB(A)	94 ±3
μέγιστη ροπή (Nm)	1898
ταχύτητα (στροφές/λεπτό)	6500
sebesség	6500
Csavar kapacitás	M20
Square drive (")	1/2
löketszám/perc	1200
levegő nyomás (bar)	6,2
Levegő csatlakozás (")	1/4
Nyomaték tartomány (Nm min-max)	320÷460
rezgésszint (m/s²)	6,4
átlagos levegő fogyasztás (l/min)	172
Sound power dB(A)	105 ±3
Átmérő (mm)	10
Sound level dB(A)	94 ±3
Sound level dB(A)	94 ±3
titreşim seviyesi (m/s²)	6,4
ortalama hava tüketimi (l/min)	172
İç hortum çapı (mm)	10
Maksimum tork (Nm)	1898
kapasite	M20
hız	6500
Square drive (")	1/2
Dakikadaki vuruş	1200
hava basıncı (bar)	6,2
Hava Girişi (")	1/4
Tork aralığı (Nm min-Max)	320÷460
среднее потребление сжатого воздуха (l/min)	172
Внутренний Ø шланга (mm)	10
диапазон крутящего момента (Nm мин-Макс)	320÷460
макс. вращающий момент (Nm)	1898
скорость (об./мин.)	6500
Sound power dB(A)	105 ±3
Sound level dB(A)	94 ±3
ход поршня в минуту	1200
производительность	M20
давление воздуха (bar)	6,2
Резьба на впуске воздуха (")	1/4
Square drive (")	1/2
slag/min. (o/min.)	1200
momentområde (Nm min-Max)	320÷460
lufttrykk (bar)	6,2
tilslutningsgjenger (")	1/4
Lydkraft dB(A)	105 ±3
Lydnivå dB(A)	94 ±3
vibrasjonsnivå (m/s²)	6,4
gjennomsnitt luftforbruk (l/min)	172
innvendig diameter på slange (mm)	10
maks. Moment (Nm)	1898
kapasitet	M20
turtall (o/min)	6500
Boltkapacitet	M20
Lufttryk (bar)	6,2
Forskruning (“)	1/4
Firkantet drev (")	1/2
vibrationsniveau (m/s²)	6,4
luftforbrug (l/min)	172
indv. diameter på slange (mm)	10
moment i brug (Nm min-Maks)	320÷460
maks. Moment (Nm)	1898
hastighed (omdr./min.)	6500
Lydeffekt dB(A)	105 ±3
Sound level dB(A)	94 ±3
Sound level dB(A)	94 ±3
Max torque (Nm)	1898
Free speed (rpm)	6500
Bolt capacity	M20
Strokes per minute	1200
Square drive (")	1/2
Recommended air pressure (bar)	6,2
Air inlet (")	1/4
Torque in use (Nm min-Max)	320÷460
Vibrations (m/s²)	6,4
Average air consumption (l/min)	172
Sound power dB(A)	105 ±3
Vibrations (m/s²)	6,4
Average air consumption (l/min)	172
Sound power dB(A)	105 ±3
Vnitřní průměr hadice (mm)	10
Sound level dB(A)	94 ±3
Max torque (Nm)	1898
Otočky za minutu (rpm)	6500
Bolt capacity	M20
Strokes per minute	1200
Square drive (")	1/2
Air inlet (")	1/4
Recommended air pressure (bar)	6,2
Recommended air pressure (bar)	6,2
Torque in use (Nm min-Max)	320÷460
Average air consumption (l/min)	172
Vibrations (m/s²)	6,4
Sound power dB(A)	105 ±3
Ø вътрешен размер на маркуча (mm)	10
Sound level dB(A)	94 ±3
Max torque (Nm)	1898
Скорост	6500
Капацитет	M20
Strokes per minute	1200
Square drive (")	1/2
Udara u minuti	1200
Prihvat (")	1/2
Ulaz vazduha (")	1/4
Max. Pritisak (bar)	6,2
Opseg snage stezanja (Nm min-Max)	320÷460
Prosečna potrošnja vazduha (l/mm)	172
Vibrations (m/s²)	6,4
Snaga zvuka dB(A)	105 ±3
Unutrašnji prečnik (mm)	10
Nivo buke dB(A)	94 ±3
Maksimalna snaga stezanja (Nm)	1898
Slobodna brzina (l/min)	6500
Bolt capacity	M20
Bătăi pe minut	1200
Pătrat de acționare	1/2
Air inlet (")	1/4
Presiunea aerului (bar)	6,2
Torque in use (Nm min-Max)	320÷460
Average air consumption (l/min)	172
Nivel de vibraţii (m/s²)	6,4
Puterea zgomotului dB(A)	105 ±3
Ø intern furtun (mm)	10
Nivelul zgomotului dB(A)	94 ±3
Max torque (Nm)	1898
Ø wewnętrzna węża (mm)	10
Sound level dB(A)	94 ±3
Max torque (Nm)	1898
Free speed (rpm)	6500
Bolt capacity	M20
Strokes per minute	1200
Square drive (")	1/2
Wlot powietrza (")	1/4
Zalecane ciśnienie powietrza (bar)	6,2
Torque in use (Nm min-Max)	320÷460
Średnie zużycie powietrza (l/min)	172
Wibracje (m/s²)	6,4
Sound power dB(A)	105 ±3
Sound level dB(A)	94 ±3
Square drive (")	1/2

Product in promotion

SuperOffer 2024

Promotion valid till 31/03/2025

Family details

Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Poids kg	Q.té par colis
Code	LxPxH mm	Peso kg	Cantidad por confección
Code	LxPxH mm	Peso kg	Número de peças por caixa
Code	LxPxH mm	gewicht kg	Hoeveelheid per pakket
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	vekt kg	mengde per pakke
Code	LxPxH mm	vægt kg	Mængde pr. pakke
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
Code	LxPxH mm	Weight kg	Quantity for packaging
U09430001	162x75x212	2,2	1

Sets / Compositons

Articles
519 M 943PC1 - Bi-colour foam module with assortment (1 pc.)
928 A1/S3 - Counter display stand with impact wrenches
943 PC1/C12 - Assortment with hexagonal sockets and impact wrench in modular box (12 pcs.)
943 PC1/S1 - Counter display for impact wrench
